Product Description

PET MDF BOARD .

PET coated mdf .PET stands for “polyethylene terephthalate” and MDF for ‘’ Medium Density Fiberboard’’. PET is eco-friendly ,no toxic gas released ,strong, impact and scratch-resistant, an excellent water and moisture barrier material, PET is widely used for food packing material The surface is made of Korea imported PET. The PET surface is applied to MDF with high-tech German technology under high heat and pressure with PUR glue.

Product	PET MDF Board
Size	12202440 MM 12202750 mm, 1220*3050 Thickness 5, 6, 9, 12, 15, 16, 18, 25mm
Core	MDF, HDF, Plywood, OSB, Particle board, PVC Foam board ETc
Hardness	Above 2H,Scratch resistance
Surface finishing	Korean LG PET Sheet
Adhesive	Germany brand hot-melt- glue
Back finishing	White or matching color high quality melamine
Color	Solid color, wood grain color, Aluminum, texture

SETTING PET film paramaters

Index		Unit	Test Result		Test Method
Index		Unit	High gloss	Supper Matt	Test Method
High gloss		/	>92	<5	60 glossy meter
Tensile strength	Machine Direction	kg/cm3	≧400	≧400	DIN EN ISO 527-1
Tensile strength	Machine Direction	kg/cm3	≧350	≧350	DIN EN ISO 527-1
Tear Strength	Transvere Direction	kg/cm3	≧100	≧100	DIN EN ISO 527-1
Tear Strength	Transvere Direction	kg/cm3	≧100	≧100	DIN EN ISO 527-1
Scratch-resistance		Class	4F	4F	DIN68861-4
Abrasion		Class	2A	2A	DIN68861-2
UV resistance		Grey scale	5	5	IS04892-2
Chemical resistance		Class	1B	1B	DIN 68861-1
Wet heat resistance		Class	8B (70 ℃)	8B (70 ℃)	DIN68861-8
Dry heat resistance		Class	7D(70 ℃)	7D(70 ℃)	DIN68861-7

It has good acid-resistance and alkali-resistance.

Its performance will not change even the temperature is -25℃or 400℃.

Easy cleaning, simple daily maintenance.

Any color is available

MDF PET Surface Panel could be easily treated and edge-covered. Appropriate for wall decoration, office furniture, household furniture, kitchen cabinet and so on.

Our company supply Particleboard PET Surface Panel, we have a whole set of the quality management system.

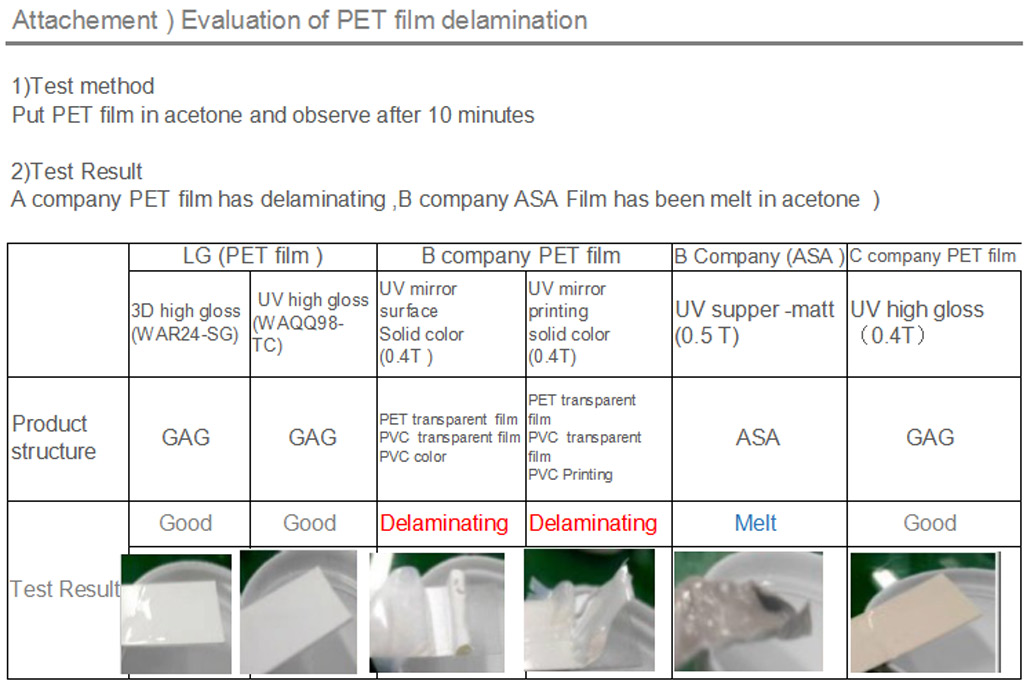

SETTING PET MDF BOARD COMPARE WITH OTHER COMPANY’S PET MDF BOARD

PET Paenl 栏目内容

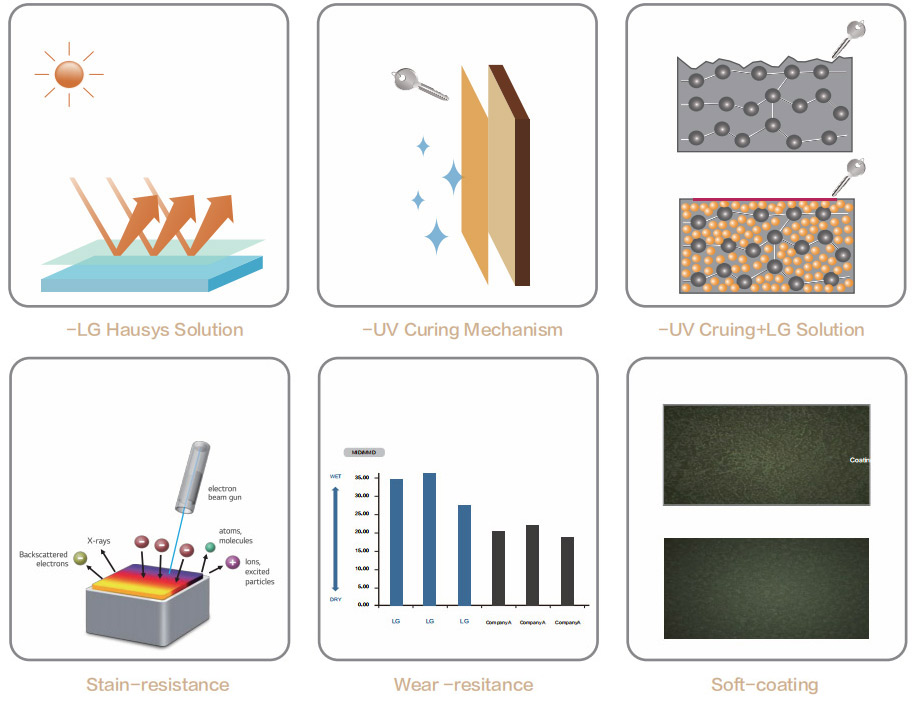

The advantages of setting PET MDF board

Eco-friendly : PET is widly used for food packing which is no toxic gas relased and can be degradable .

UV -Resistance : PET mdf board surface with LG additives ,Reflecting the light .Performing best uv resistance .

Scratch-Resistance :With newly developed coating system ,Scratch resistance has been improved .

Flatness and abrassion resistance :Extrame mark resistance and abrasion resistance ,Low orange peel and flow mark

No color difference :Batch to batch color stable

PET Paenl栏目内容

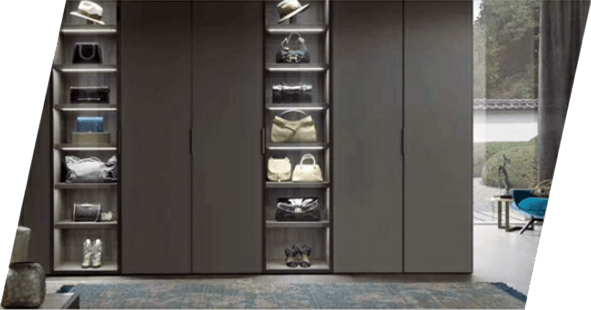

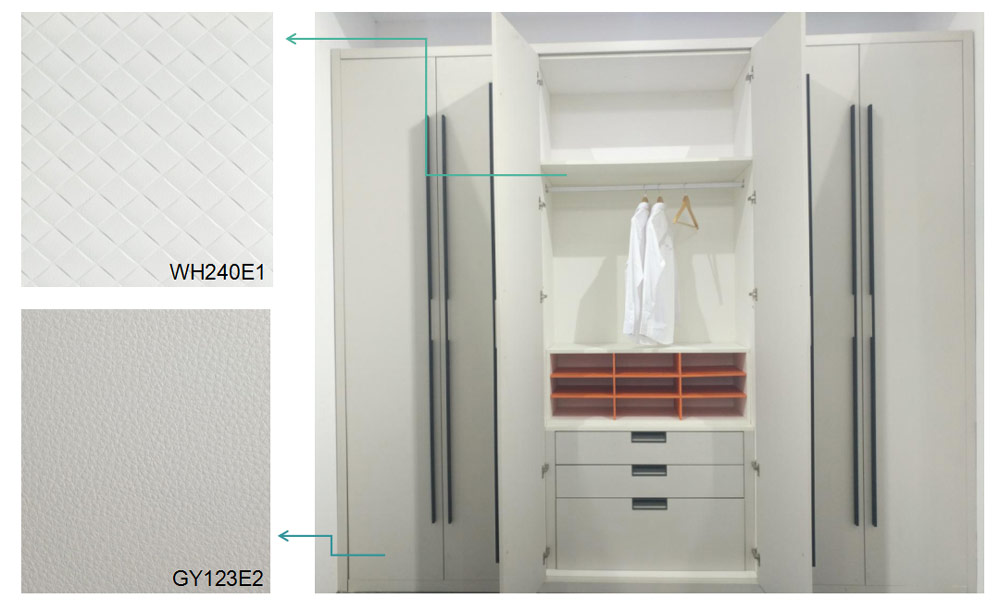

The application of PET MDF Board :

Our PET coated MDF panels are used for all millwork projects such as:
kitchen cabinets
bathroom vanity cabinets
office cabinets
custom closets
modern display units
furniture, store fixtures
interior wall panels

Colors of PET MDF Board :

We have more than 60 colors of PET mdf board available .The colors contains :

High gloss Plain color series

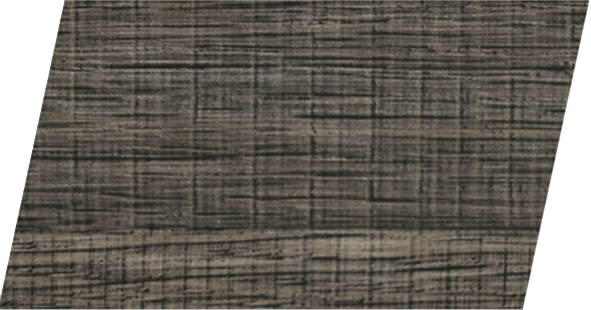

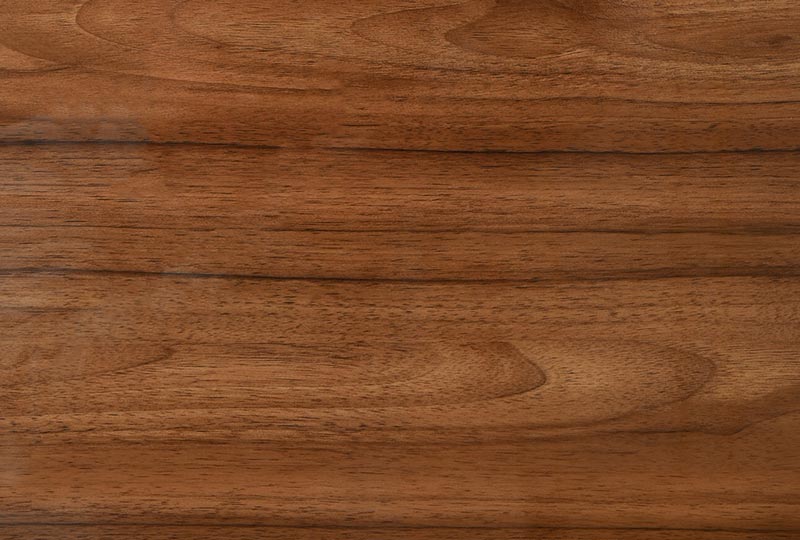

Wood grain series

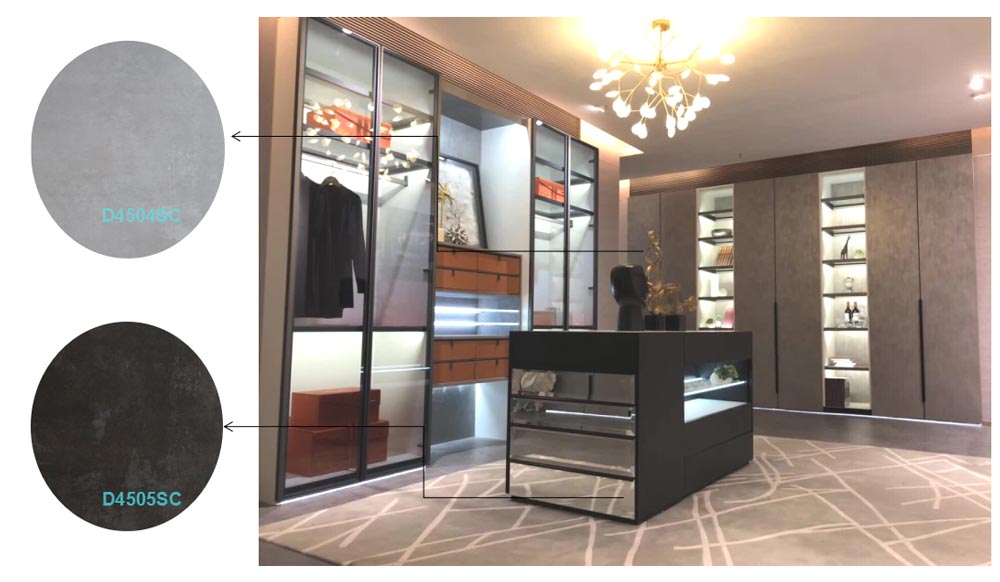

Marble stone color series

Deep imbossed series

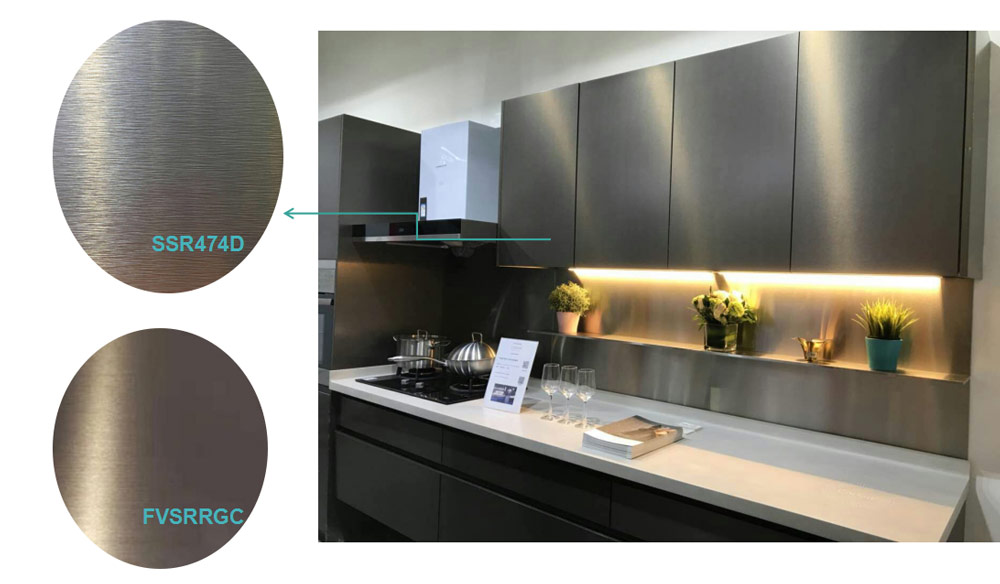

Metal brushed series

Color Display
